SPAS Carbon Fiber Extended Magazine

SPAS/LAW/SAS 12 Carbon Fiber Extended Magazine

New & Improved!

Delrin end plug instead of Aluminum -- this entire part is feather weight!
Now has ring intact for sling mount tab (new pictures below)

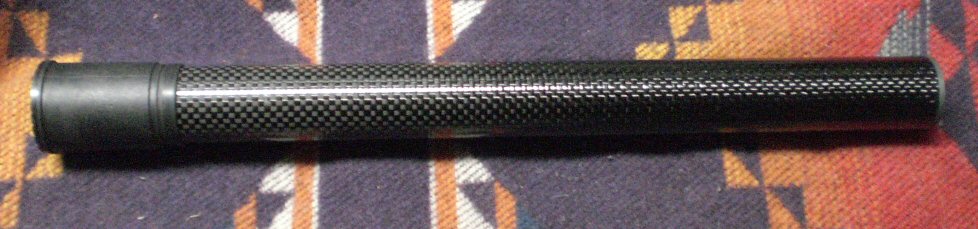

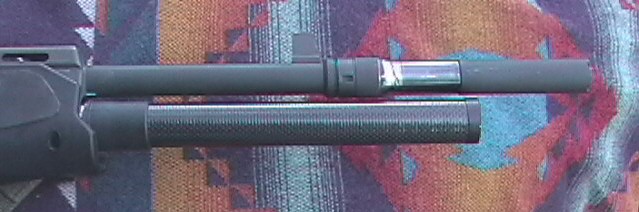

This is an entire new magazine design for the SPAS12, LAW, and SAS. As usual, I don't just make replacement parts -- I make re-engineered better parts.

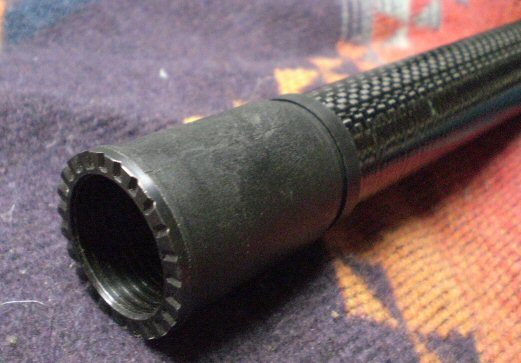

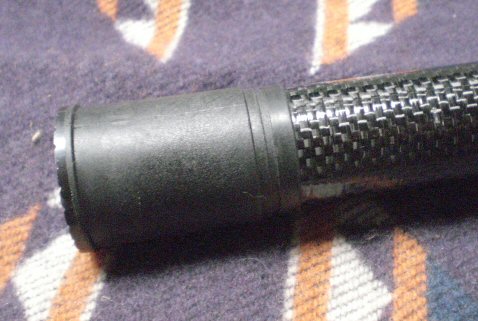

The end that screws on the gun is made from a genuine Franchi polymer extended magazine tube. This tube was shipped on the SPAS and other guns towards the end of the production run. It is not identical to the metal version.

The tube itself is made of rigid woven Carbon Fiber composite. This is the dark material with the beautiful weave visible just below the surface, used on pistol grips and knife handles for its hi-tech look. The tube is silky smooth on the inside and is hard as a rock. If wacked, the factory metal tube would bend or dent and put the gun out of commission, but this tube will be untouched.

    * Temperature Range: -100° to +200° F
    * Good temperature insulator
    * Flexural Strength: 174,000 psi
    * Compressive Strength: 128,000 psi

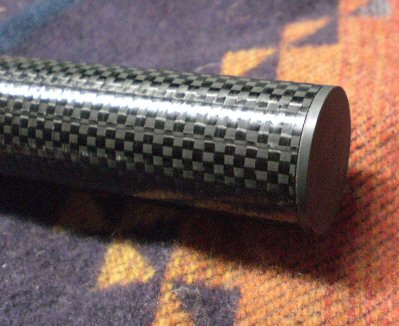

It is finished off with a black Delrin end cap. (Note the new cap has changed dimensions below)

It will come in 3 "standard" lengths. It is made in the same length as the stock Franchi part, which is often called the "8 round" extension. For details on how many shells it really holds, see here. It also comes in +1 and +2 versions which add around 2.5" and 5" to the original length, which should add one or two crimped end rounds and a bit of space for the longer compacted spring.

Model Rounds Capacity Overall Length Internal Length

Franchi Standard Standard (7 or 8) 7.50" 7.44"

My Standard Standard (7 or 8) 7.75" 7.44"

My +1 Standard Plus One 10.25" 9.94"

My +2 Standard Plus Two 12.75" 12 .44"

Maximum Plus two plus space 13.00" 12.69"

Model	Rounds Capacity	Overall Length	Internal Length
Franchi Standard	Standard (7 or 8)	7.50"	7.44"
My Standard	Standard (7 or 8)	7.75"	7.44"
My +1	Standard Plus One	10.25"	9.94"
My +2	Standard Plus Two	12.75"	12 .44"
Maximum	Plus two plus space	13.00"	12.69"

The lengths above are recommendations only -- you can ask for any internal or external length.

Unlike most of the other parts I am making, this part will have a limited production run. As soon as the Franchi part I use runs out, that will be the end. You have been warned.

It comes complete with a Top Quality Wolf 40" universal Spring that you will trim to the desired length ($10 value). It won't be long enough if you exceed the Standard lengths above.

I will need to know the length you want -- see chart above.

Fine Print: All purchases are final, and are F.O.B. Kettering, Ohio. We may exchange an incorrectly ordered part at our option, but no refunds are given -- we can't sell used parts. THIS PART IS SOLD "AS IS" BY APPLIED TECH, INC. AND WITHOUT WARRANTIES AS TO PERFORMANCE OR MERCHANTABILITY OR ANY OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED. NO WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS OFFERED. THE PURCHASER MUST ASSUME THE ENTIRE RISK OF USING THE PART. ANY LIABILITY OF THE MAKER, OR SELLER, WILL BE LIMITED EXCLUSIVELY TO REFUND OF PURCHASE PRICE. Professional installation is recommended.
